CalDigit Thunderbolt 4 Element Hub – 4X USB4 Ports, USB 3.2 Gen2 10Gb/s, Single 8K or Dual 4K Displays, 60W Charging, 0.8m Cable

Price: $199.95
(as of Jun 28, 2024 22:42:52 UTC – Details)

Product Description

Thunderbolt 4 Element Hub

The CalDigit Thunderbolt 4 Element Hub is the first of its kind, offering 4x the performance of traditional USB-C hubs, whilst harnessing the power of Thunderbolt 4 in order to create a device without compromises. Every Element Hub workflow will be different from the next, bringing with it the potential for incredibly unique set-ups, only limited by your imagination.

Connect what you need, when you need.

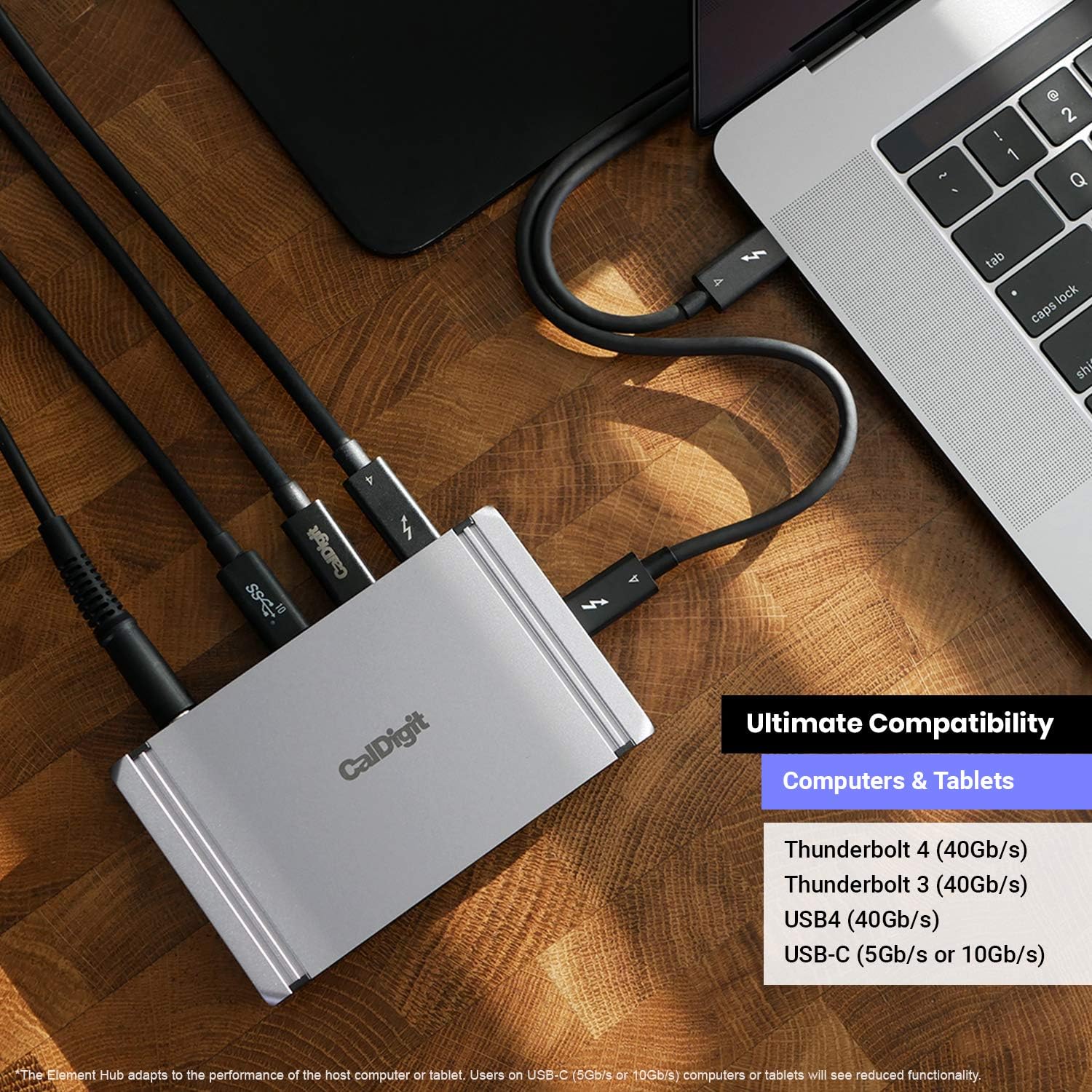

Ultimate Compatibility

Of course the Element Hub is not only for Thunderbolt 4 users. This versatile device is backwards compatible with Thunderbolt 3, USB-C, and USB 4.

This means that the Element Hub will adapt to the connected host computer in order to provide the features available to you, making the Element Hub an ideal solution for multi-workflow environments. In addition, the included Thunderbolt 4 cable is compatible with Thunderbolt 4, Thunderbolt 3, USB-C and USB 4 Type-C computers.

Built-in USB Ports

Whilst the Element Hub’s Thunderbolt 4 ports add a wealth of connectivity potential, the built-in USB-A 10Gb/s ports (USB 3.2 Gen.2) allow you to easily connect up to four high-performance USB-A devices such as ultra-fast NVMe SSDs.

Don’t Compromise On Speed

The Thunderbolt 4 ports are capable of speeds up to 3,000MB/s in order to take advantage of your ultra-fast storage devices. That is 8.5x the performance of a typical 5Gb/s USB-C hub, which offers speeds around 350MB/s from its USB-A ports.

iPad Pro & Windows Tablets

As the Element Hub is a Thunderbolt 4/USB4 device, it is compatible with USB-C tablets such as the iPad Pro or Windows tablets.

Simply connect the Element Hub to your tablet and take advantage of the connectivity options.

Monitor Compatibility

The fact that the Element Hub has multiple Thunderbolt 4 ports means that you can connect to any type of monitor you require.

You can directly connect a USB-C, Thunderbolt 3, or Thunderbolt 4 monitor for simple plug and play simplicity. Alternatively you can use a USB-C Video Adapter to connect an HDMI or DisplayPort monitor.

When connected to a Thunderbolt 4 host computer the Element Hub is capable of adding a monitor up to 8K resolution, or dual 4K 60Hz monitors in either extended or mirrored modes.

Thunderbolt*Thunderbolt 3Thunderbolt 4USB-CHDMI**DisplayPort**mDP**VGA**DVI**

*With use of the Apple Thunderbolt 3 to 2 Adapter.

**With use of a USB-C Video Adapter.

For non-Thunderbolt 4 users the possible monitor resolutions can be seen below.

Tablet & Ultrabook Charging

The Element Hub not only offers versatile connectivity options, it will also charge a Tablet or Ultrabook at up to 60W through the [Computer] port.

Unlike other Thunderbolt 4 hubs on the market, the Element Hub has a fixed 60W laptop charging function. Whilst other Thunderbolt 4 hubs reduce their laptop charging capabilities down to 30W charging or lower when the hub is fully loaded, the Element Hub will consistently provide 60W of charging if connecting to the laptop such as MacBook Pro 13″.

A Powerful Offline Charging Station

The Element Hub can even work for you when it’s not connected to your computer. Keep your USB-A or USB-C devices connected to the Element Hub and it will continue to charge them. All 8 ports on the Element Hub can be used at the same time for offline charging.

Technical Specifications

Interface

4 x Thunderbolt 4 (40Gb/s) 4 x USB-A 3.2 Gen.2 (10Gb/s) 1 x AC Power

Minimum System Requirements

macOS 11 (Big Sur) or above Windows 10 or above Windows Tablet Thunderbolt 4 or Thunderbolt 3 Computer USB-C (USB 4) Computer or USB-C (USB 3.1) Computer iPadOS, iPad Pro, iPad Air (4th Gen) Chrome OS, USB-C ChromeBook

Power Delivery

Up to 60W Host Charging (5V/3A, 9V/3A, 15V/3A and 20V/3A) Each Downstream Thunderbolt 4 / USB4 Port: 15W (5V/3A) Each USB-A Port: 7.5W (5V/1.5A)

Size & Weight

Height: 0.70″ (18mm), Width: 2.75″ (70 mm), Length: 4.48″ (114mm), Weight: 0.39lbs (0.18kg)

In The Box

1 x Thunderbolt 4 Element Hub 1 x Thunderbolt 4 Cable 0.8m (Passive) 2 x Rubber Feet Strips 1 x Power Supply (150W) 1 x Power Cord

Works with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C computers, including Apple M4, M3, M2, M1, Max Pro, Ultra, Intel based Macs (with adapter), Windows PCs, and Chrome OS devices. Also compatible with the iPhone 15 Pro and tablets including iPads and Windows tablets that feature Thunderbolt or USB-C. **Thunderbolt 4, Thunderbolt 3, or USB4 Type-C is required for unrestricted functionality of the Element Hub. Please visit our website for more details.
4 x Thunderbolt 4 40Gb/s Ports – Ideal for high resolution displays & high speed NVME SSD storage devices. 60W of power is available to charge your host device. Downstream Thunderbolt 4 ports provide 15W of power for peripheral devices. A maximum of two displays is supported via downstream Thunderbolt 4 ports. Thunderbolt and USB4 laptop users can daisy-chain Thunderbolt, USB4, and USB-C devices to the Element Hub.**Users on non-Thunderbolt and USB4 hosts, such as USB-C computers (USB 3.2, USB 3.1), are able to daisy-chain USB-C devices only. In order to daisy-chain Thunderbolt devices, a Thunderbolt or USB4 connection is required.
60W Power Delivery – Charge your computer, tablet, or host device while connecting up to 7 additional devices! The Element Hub can even work for you when it’s not connected to your computer. Keep your USB-A or USB-C devices connected to the Element Hub and it will continue to charge them. All 8 ports on the Element Hub can be used at the same time for offline charging.
High Resolution Display Compatible – 8K 60Hz, dual 4K 60Hz, or 1440p 240Hz extended displays supported. USB-C video adapters can be used with downstream Thunderbolt 4 ports to convert to HDMI or DisplayPort. **Additional monitor compatibility information is available on our website.
4 x USB 3.2 Gen 2 10Gb Type-A Ports – Ideal for accessories such as keyboards, mice, SSD or HDD storage devices. Each USB-A port provides 7.5W of power for your devices.
